CNC Router Capabilities

Ideally suited for individual and nesting parts machining, Pearson Millwork CNC routing offers versatility with excellent processing performance. With two CNC machines, and flexible operation, we can meet your specific needs. We can tool and nest from most CAD files and can accommodate a variety of materials such as PVC, foam, solid surface materials, and a wide range of wood sheet products. Maximum acceptable size is 5-ft x 10-ft. Reliability and repeatability is our priority.

Machine Features

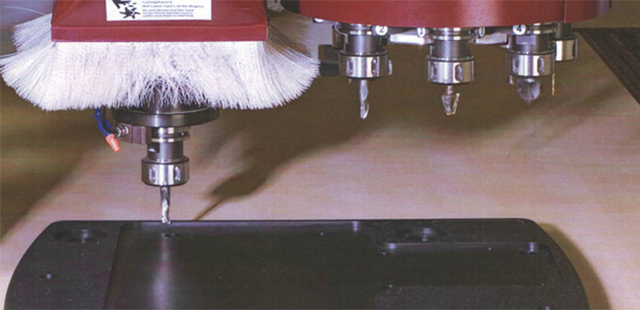

Moving bridge (stationary table) type equipped with one 15-HP router head with an 8-position automatic tool changing system.

The work table has two vacuum zones, which allows for holding a wide range of small and large work pieces and X, Y and Z axis operation.

CNC Router Technical Specifications

• Table size 126-in x 63-in
• Table pop-up pins 14
• Vacuum zones 2
• Axis Stroke X axis: 134-in
  Y axis: 86-in
  Z axis: 10-in
• Maximum Rapid Rate X & Y axis:
• 1,968-in/min
  Z axis: 472-in/min

Spindle No. 1 – Router Spindle

• Spindle Type Anderson 2-Pole Grease
• Motor Power 15 HP
• Spindle Speed (RPM) 1,000 – 24,000
• Vertical adjustment distance 15mm
• Changeable tools 8
• Tool Holders 8 Sets

Spindle No. 2 – Router Unit

5 x5 Boring unit fixed distance between spindles 32mm on center.
